Installing a 301 in a cabinet

How do you get this machine...

Into that cabinet??


FIRST:
Start with the cradle:
 The 301 has no 'hinge holes" in the base of the machine.  The cradle provides the structure to attach to the hinges.
set screw as seen from beneath the cradle
Hinge hole

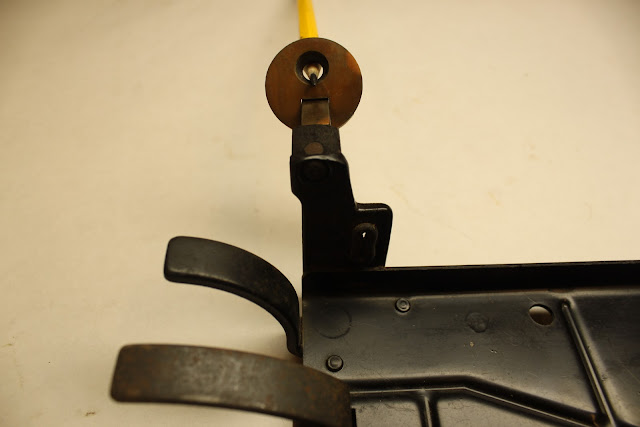

Hinge in the hole as seen from underneath
From the top

Hinges at home

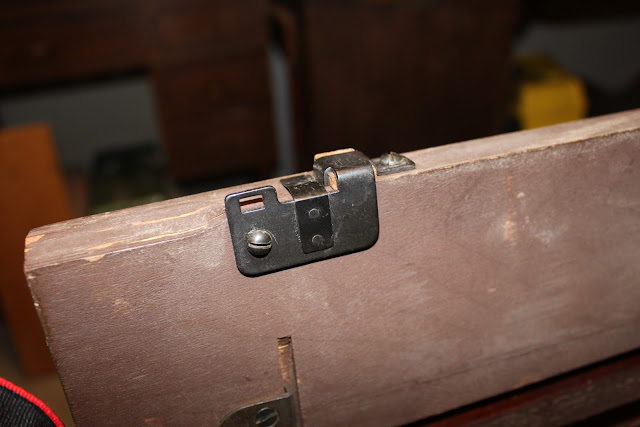

Brackets for the front of the cradle.  NECESSARY



Cradle installed

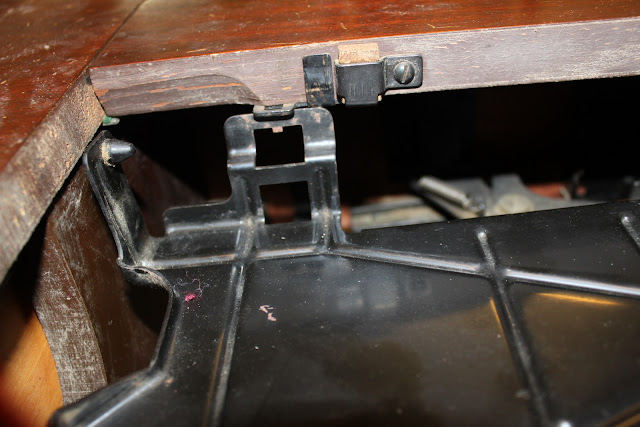

Cradle attached to front brackets


Lining up machine with male end on cradle

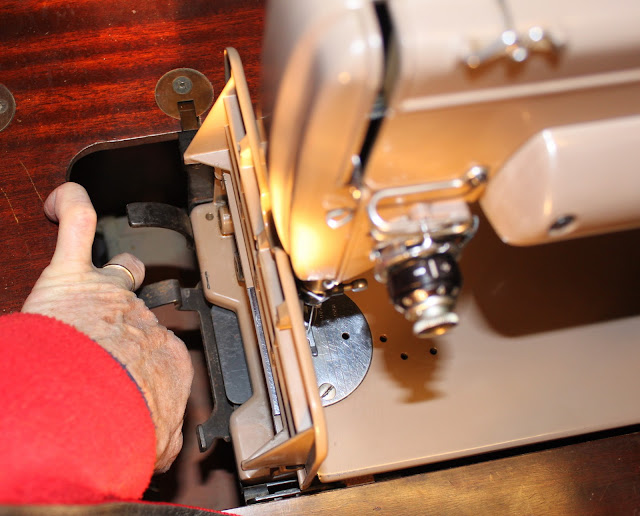

Placing the front.  Pushing down the spring

Spring engaged.

Done
