I DID IT !!!!!

Well folks, thanks to Rain at The Vintage Singer Sewing Machine Blog  http://vssmb.blogspot.com I rewired this 201 potted motor.  I would not have been able to do it without his VERY VERY EXCELLENT step by step instructions on his blog.  I was so excited that I did not photograph the process of re-assembling the motor.  I just put the sucker back together.  I did, however, take  photos of the soldering:

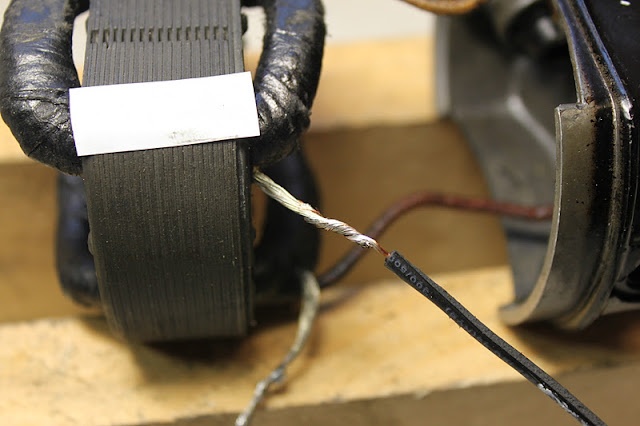

Before trimming the wires

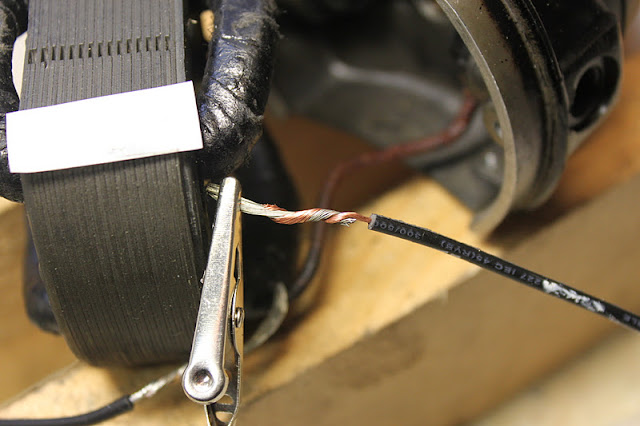

Mechanical connection (aka braid) and alligator clip as heat sink

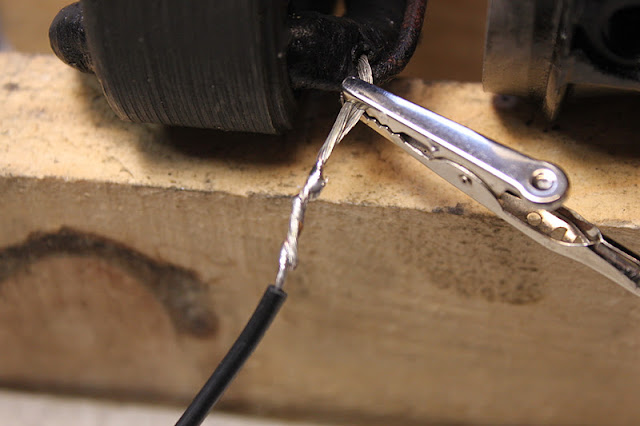

Soldered

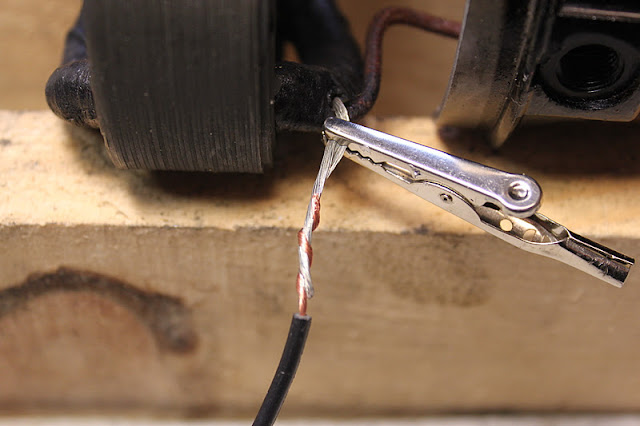

Mechanical connection and heat sink white lead

Soldered
 I did put heat shrink on these connections and I found that the hair dryer frightened me.  I was afraid that I might get the whole motor too warm.  So I tried the butane lighter trick.  That was nerve wracking as well but I managed to get the stuff shrunk down and tight.

I also tied my underwriter knot and put the whole thing back together.  See how tidy it looks inside?

I am so proud of this project.  Here is the underwriter knot all highlighted:



Very Nice.  Next, I will put some shrink wrap on these leads to make them one and solder some connecting rings.  I can do that, easy peasy.  I would have done that tonight.......if I hadn't felt guilty about never cooking a meal for the best husband in the world.  So I made some parsnips and tofu for dinner......yum......Hey, the guy likes it, what can I say????

Now I am ready to clean out this 201 and get it stitching.....Wooooooo hoooooo.
