Kenmore 158.1813

A reader emailed me and asked for some photos of the cam area of the Kenmore158.1813.  So I complied.  One thing we must all remember when dealing with these older machines,  they get gunked up.  Rarely are there missing or broken parts.  Most of the time the problem is dried oil.  Heat and new oil or cleaning with denatured alcohol is the cure.  I have had many a Kenmore not work and all that was needed was oil and heat.  Or reading the manual.  The problem:  sometimes we don't have a manual.

So here are the photos.  Hope that they help

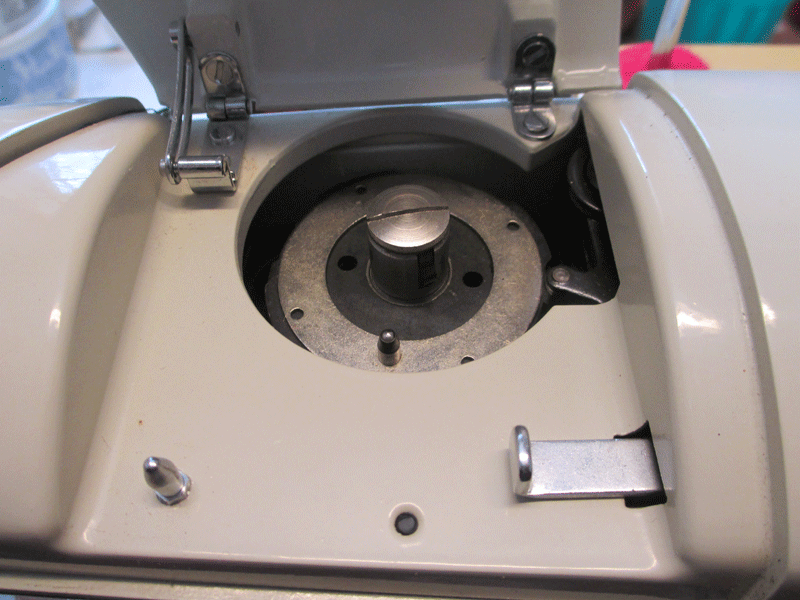

Top of camstack without the cam

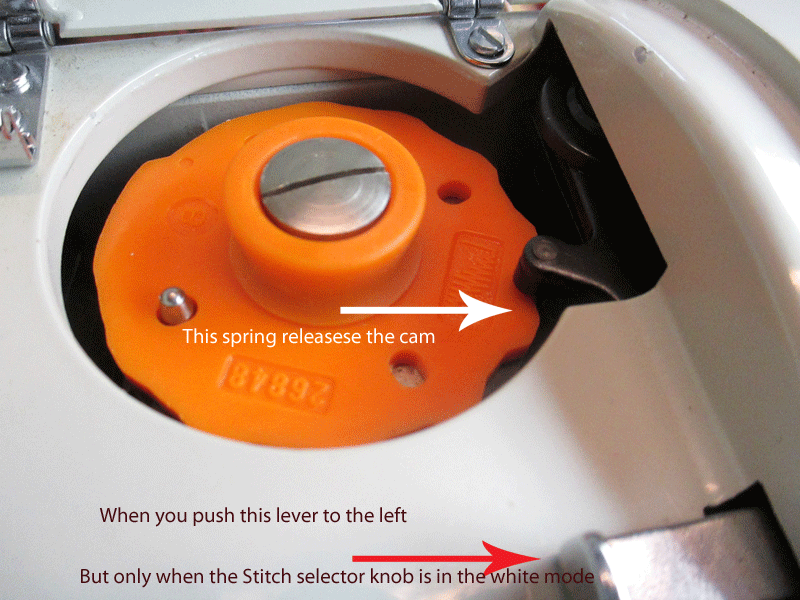

Camstack with cam.   Should read special stitch selector knob.
Special stitch selector knob in white mode
Break away photo of top of machine "hinged up"
Cam follower in cam mode
